In every facet, the design of Living Vehicle exudes the feeling of home. It emphasizes the intuitive needs of the user to foster a connection with the things that matter most in life -- the people and the world outside.

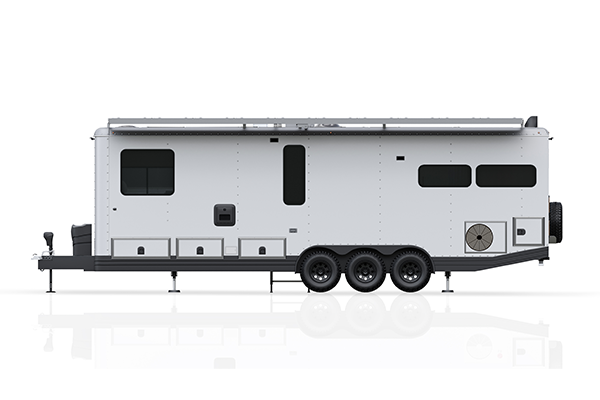

Living Vehicle™ Specs
WEIGHTS & CAPACITY
  • Sleeping Capacity - 6
  • Length - 27’ 4”
  • Length Overall (Hitch to Bumper) - 30’ 11”
  • Exterior Width - 8’ 4”
  • Interior Width - 8’ 0””
  • Exterior Height w/o AC - 10’ 5”
  • Exterior Height w/ AC - 10’ 11”
  • Interior Ceiling Height - 6’ 8”’
READ MORE +
  • Hitch Weight (lbs.) - 990
  • Unit Dry Weight (lbs.) - 7,992
  • GVWR - Maximum Trailer Capacity (lbs.) - 13,200
  • Net Carrying Capacity (lbs.) - 5,208
  • Ball Height - 23”
  • Ball Size - 2-5/16”
  • Under-Skin Ground Clearance - 14”
  • Departure Ground Clearance - 22”
SHELL, FRAME & EXTERIOR
  • Chassis - 5” All-Tube Aluminum
  • A-Frame - 7” Tube Aluminum Tri-Bar
  • Folding Door - Clam-Shell or Optional Gate Deck
  • Heated Subfloor - Conditioned Basement
  • Ceiling Joists - 6” Aluminum Trussed
  • Insulation Ceiling (R-Value) - R-25
  • Insulation Floor (R-Value) - R-19
  • Insulation Walls (R-Value) - R-7
READ MORE +
  • Windows - Tempered, Dual Pane
  • Window Screens - All Operable Window Openings
  • Roof - Seamless Aluminum Sheet, Mill Finish
  • Axles - (2) - 6000# Torsion Axles
  • Brakes - 4-Wheel, Independent Electric Brakes
  • Tongue Jack - 3000# Electric w/ Light
  • Hitch Coupler - 15,000# – 2-5/16”
  • Entry Door - Aluminum w/ Screen
  • Stabilizer Jacks - 12V Dual C-Jack
SYSTEMS (MEP)
  • Electrical Line-In - 50AMP
  • Concealed Propane Tanks LPG (Lbs.) - (2) 30
  • Propane Tanks - Pull-Out Access Drawer
  • Fresh Water Tank - (Gal.) 100
  • Gray Water Tank  - (Gal.) 62
  • Black Water Tank -(Gal.) 45
  • Fresh Water Fill - Diverter Valve From City Water
  • A/C  (Btu.) - 13,500
READ MORE +
  • A/C Vents - Fully Ducted System In Ceiling
  • Ventilation Fans - (2)-12V Automatic w/ Fan
  • Heating Design - In-Floor Ducted System
  • Heating - 30K BTU. Forced Air, Propane
  • Lighting (Interior) - Warm LED & Dimmable
  • Lighting (Patio Exterior) - (2) Warm, LED
  • Lighting (Front & Streetside) - (3) Warm, LED
  • Water Heater - Tankless, LP
  • Washer/ Dryer - Washer & Dryer Combo, Vented, 110V *W/D non-inverter powered
  • Central-Vac - Integrated System & Hose
  • Dishwasher - Flip Down – 110V 6-Setting
FINISHES
  • Exterior - All-Aluminum – Bright Finish
  • Rock Guard - Polished Stainless Steel
  • Interior Walls - Heat Treated White Aluminum
  • Cabinetry Frames - All-Aluminum Tube, Mill Finish
  • Cabinet Doors & Drawers -Aluminum Sheet o/ Foam Core
  • Interior Ceiling - Heat Treated White Aluminum
  • Window Screens - Pull Down White Vinyl
  • Countertops - Solid Surface
READ MORE +
  • Window Tinting - Privacy Coating
  • Cushions - Sunbrella Marine Fabric
  • Flooring - Rustic Waterproof Wood LVP
  • Ceiling A/C Vents - Heat Treated White Aluminum
  • Floor Vents - Brushed Nickel Floor Registers
  • Rear Contrasting Panel - Heat Treated Coated Color [OPTION]
Kitchen
  • Refrigerator & Freezer - 7 cu.ft. – 2 Stainless w/ Icemaker
  • Cooking - Two Burner, Stainless LPG Cooktop
  • Ventilation - Flush Mounted Stove Vent
  • Water Filter - Countertop Water Filtration, Chrome
  • Skylight - Fixed, Frosted White - Blind
  • Soap Dispenser - Countertop-Mount, Chrome
  • Island - Modular & Movable w/ Storage
  • Trash Chute - Basement Access Trash & Recycling
READ MORE +
  • Pull-Out Trash Can - Exterior Access, Dual Containers
  • Microwave & Oven - Integrated Stainless
  • Kitchen Sink - Stainless, Zero Radius, Commercial
  • Dishwasher - 6-Setting 110V, Integrated
  • Kitchen Faucet - Modern, Multi-Spray Pull-Out, Chrome
  • Backsplash - Horizontal Sliding Window
  • Pantry Ceiling - Height - 5 Drawer Pull Out
  • Overhead Storage - 3 Door with Shelving
  • Drawer Bank - 5 Drawer Bank In Lower Cabinet
  • Drawer Bank - 5 Drawer Bank In Lower Cabinet
  • Deep Drawer Storage - Pots & Pans Storage Drawer
  • Outdoor BBQ - Gas-Powered Grill & Cooking Surface
BATHROOM
  • Shower - 30” x 30” Spa-Style
  • Shower Valve & Faucet - Multi Flow Wand
  • Rain Shower - Rain Showerhead
  • Shower Floor - Floor Level - Teak Deck Mat
  • Shower Walls - Heat Treated White Aluminum
  • Shower Wall Back - Floor to Ceiling Teak Slats
  • Shower Storage - Modular Hanging Rack System
  • Shower Door - All Glass & Chrome Hardware, Locking
READ MORE +
  • Shower Skylight - Full Shower Width, Clear Daylight
  • Radiant Heat Towel Warmer -Chrome - Wall Mounted, 110V *Towel Warmer non-inverter powered
  • Bathroom Sink - Glass Vessel ½” Tempered
  • Toilet - Vitreous China, Full Height, Foot Flush
  • TP Holder - Modern, Chrome - Vertical Style
  • Bathroom Storage - 2 Shelves - Under Vanity
  • Medicine Cabinet - All - Aluminum w/ Shelves
  • Bathroom Countertop -Solid Surface
  • Bathroom Mirror - Head to Toe Dressing Mirror
  • Bathroom Mirror - Head to Toe Dressing Mirror
  • Outdoor Shower - Stainless Pull-Out Shower
  • Bathroom Ventilation - Powered Vent Fan & Lid
LIVING AREA

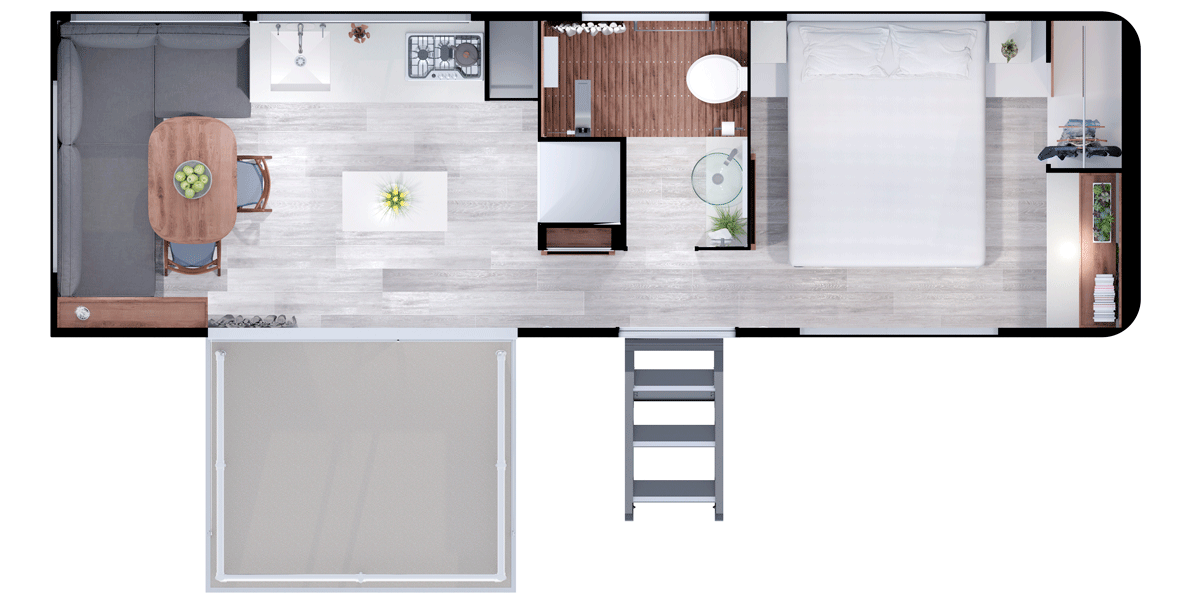

  • Living Design - Open Plan - Living, Kitchen & Dining
  • Sofa & Lounge - Convertible Dining & Sofa-Bed
  • U-Shaped Dining Area - Seats 6
  • Euro-Loft In-Ceiling Double – “Always Made”
  • Euro-Loft Power - 12V Automatic
  • Euro-Loft Size - Extra Long Full - 54” x 90”

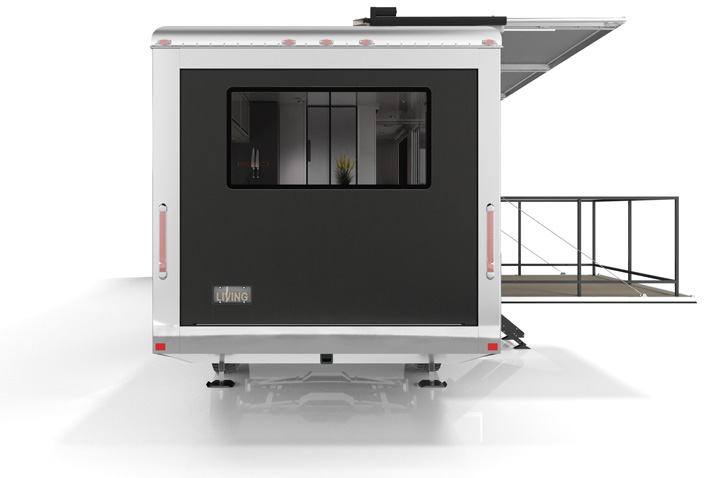

  • Bi-Fold “Clam Shell” Door [OPTION] 8 Foot Deck & Canopy 1000#
  • Gate Deck Door [OPTION] - 8 Foot Deck 1000#
READ MORE +
  • Euro-Loft Access - Aluminum Ladder - Stowable
  • Dining Table - White, Rounded Corners
  • Deck Railing - Modular – Aluminum & Screen
  • Guest Bed - Lounge - Extra-Long Double Bed - 52” X 88”
  • Lounge Fabric - Sunbrella Marine
  • Living Lounge Storage - Full Pass-Through – Int. & Ext. Access
  • Shoe Storage - Under-Lounge
BEDROOM
  • Bedroom - Queen Bedroom Suite
  • Master Bed – Queen [OPTION] 60” X 80” Cool-Touch Memory Foam
  • Sofa Sleeper [OPTION] Folding Sofa Sleeper
  • Under-Bed Storage - Gas Support, Lift Up Storage
  • Bed Skylight - Star-View, 48” x 30”
  • Dresser - 4 Drawer – In Closet
  • Closet - Floor to Ceiling Closet - Double Slider
  • Closet Features - 6’ Wide, Closet Rod, w/ Shelving
  • Closet Lighting - (2) 12V LED Lights (In Closet)
READ MORE +
  • Closet Lighting - (2) 12V LED Lights (In Closet)
  • Laundry & Linen Storage - Under W/D Compartment
  • Folding Tabletop - Above W/D - Solid Surface
  • Curbside Window - Vented, Oversized
  • Streetside Window - Above Head of Bed, Egress - Vented
Electrical, Solar & Inverter
  • Batteries - All LITHIUM Battery Bank
  • Inverter - 2800W Pure Sine Inverter
  • Solar Panels - 600W Monocrystalline Solar Array
  • Solar Controller - Solar Converter w/ Remote Monitor
  • Inverter Monitor - Remote Monitor Panel
  • 110V Inverted Panel - 110 Load Inverted Panel
  • 110V Sub Panel - Non-Inverted AC Panel, Select Eqmt.
  • 12V Panel - Distribution Panel w/ Lighted Fuses
    Audio, Video & Technology
    • Wireless Camera System -Wireless LCD Tow Vehicle Screen
    • Wireless Security Monitor - In-Unit Monitoring on TV
    • Wireless Module - Roof-Mounted Transmitter
    • Camera 1 - Front Hitch Monitoring Camera
    • Camera 2 - Backup Camera
    • Camera 3 & 4 - L & R Side Mount – Blind Spot
    • Multi-Zone AV System - 3 Channel – Living, Bed/Bath, & Outdoor
    • A/V Controller - High-End A/V, BT, HDMI
    READ MORE +
    • Speakers -  8” HI-FI Ceiling Speakers
    • Living Room Speakers - (2)
    • Bedroom Speakers - (2)
    • Bathroom Speakers - (1)
    • Outdoor Speakers - (2)
    • Living Television - 32” LED HDTV, Wall Mounted
    • WIFI Antenna - OMNI Antenna, WIFI & LTE
    • Wireless Router - Dedicated & Private Network
    • LTE  Antenna - Open Source Cell Provider Port - USB
    Exterior, Access & Storage
    • Outdoor BBQ - Gas-Powered Grill – Polished Stainless
    • Rear Storage Compartment -(Ext) 8’, Full Length, Pass-Through
    • Primary Storage Bay (Ext) -Street-side Storage, Spare Tire
    • Systems Access - Combined Systems Bay, Conditioned
    • Bed Skylight - Star-View, 48” x 30”
    • Dresser - 4 Drawer – In Closet
    • Closet - Floor to Ceiling Closet - Double Slider
    • Closet Features - 6’ Wide, Closet Rod, w/ Shelving
    READ MORE +
    • Closet Lighting - (2) 12V LED Lights (In Closet)
    • Laundry & Linen Storage - Under W/D Compartment
    • Folding Tabletop - Above W/D - Solid Surface
    • Curbside Window - Vented, Oversized
    • Streetside Window - Above Head of Bed, Egress - Vented
    Living Vehicle™ Features
    All features listed below are included at no additional cost.
    Free shipping is offered for all orders in the Contiguous United States
    4 Season Travel
    Unprecedented insulation performance allows Living Vehicle to support life in extreme climates so you can enjoy your surroundings year-round.
    READ MORE +
    The ceiling, floor and walls feature insulation values that surpass the level of most stationary homes. Dual pane windows throughout are a key design advantage for 4 season performance. All internal HVAC and plumbing systems are located in the fully-conditioned basement, preventing utilities from freezing or overheating.
    • Full VHB Thermal Break On Exterior Side
    • Dual-Pane Windows
    • Insulation Ceiling R-20
    • Insulation Floor R-18
    • Insulation Walls R-7
    • AC w/ Heat Pump
    • High Capacity Furnace
    Audio, Video & Technology
    The technological features of Living Vehicle are designed to support a modern lifestyle so you can focus on connection to the people and the world outside.
    READ MORE +
    Installed on the roof of the unit is a combination WIFI and LTE antenna that may collect signal from a nearby hotspot or connect to cellular data. This feature provides a private secure network for the unit as well as connectivity for internet-enabled monitoring and control devices. The cornerstone technological feature of Living Vehicle is the iOS control based system for remote management of vital systems including tank levels, awning, exterior lighting and stabilizer jack. The audio & video systems also feature multi-zone, app-based control with Hi-Fi performance.
    • WIFI & LTE Antenna, Private Router & Network
    • High-End A/V Controller, DVD, HDMI, App-Control
    • (3) Multi-Zone Audio System
    • 7 Speaker Sound System
    • 8” HI-FI Ceiling Speakers
    • Ios App-Control Systems, Lighting & Functions
    Bathroom Spa
    For a luxurious bathing experience with a spacious feel, the spa-style bathroom is your private home sanctuary to relax and unwind.
    READ MORE +
    This beautiful feature accentuates several aspects of the bathroom experience. A teak wall in the shower provides a spa-style aesthetic and doubles as a modular mounting system for hooks, baskets, towel bars and shelving. A skylight in the shower centers a separate rain-shower head for luxurious bathing with an abundance of natural light. A towel warmer that doubles as a bathroom heater provides a comfortable ambient temperature with hot towels ready for use.
    • 110V Chrome Room And Towel Warmer
    • Vertical Teak Wall & Hook System In Shower
    • Shower Skylight
    • Rain Showerhead
    CHEF’S KITCHEN
    Come together for meals with family or friends and enjoy the spacious atmosphere of the fully functional chef’s kitchen.
    READ MORE +
    An easily removable island is installed in the center of the kitchen area for prepping food and serving meals. The island has two cabinet doors with high-end locking hardware for increased storage. The kitchen also features a gooseneck commercial faucet, water filtration and soap dispenser – all centered on a commercial style, single basin stainless-steel sink. The double door stainless steel refrigerator features an icemaker and full-height storage capacity. A fully integrated 6-setting dishwasher is installed in the kitchen bank of cabinets.  A full-size convection oven and microwave combo is installed below the three-burner gas stovetop.
    • Modular & Movable Island w/ Storage
    • 6-Setting 110V Integrated Dishwasher
    • Countertop-Mount Soap Dispenser
    • Countertop-Mount Water Filtration
    • Double Door Stainless Fridge w/ Icemaker
    • Commercial Style Deep Stainless Sink
    DAY & NIGHT SKY-VIEW
    Skylights illuminate the interior to encourage a fluid connection with nature and the outdoors.
    READ MORE +
    For maximum enjoyment of both day and night use, three strategically placed skylights allow in an abundance of natural light. The bedroom skylight provides an unobstructed view to the stars when falling asleep. A blackout curtain may be pulled to block out the sun for sleeping in. The kitchen skylight is frosted white and allows a radiant glow of sunlight into the living and cooking areas. There is also a large skylight placed above the shower in the spa bathroom.
    • Operable Bedroom Star-View Skylight
    • Fixed Kitchen Skylight
    LIVING AREA EUROLOFT BED
    Effortlessly transform your living area into a comfortable sleeping space for friends and family with a Euroloft bed that automatically lowers from the ceiling.
    READ MORE +
    The app-controlled Euroloft lowers from a “ready to go” position in the ceiling with the sheets, pillows and comforter set up for immediate use. There are 12V LED lights installed above the bed for additional illumination. The bed is extremely high quality and is manufactured by a renowned Italian company and product developer. The mattress itself is  comfortable and utilizes high-density foam over a flexible wood slat mattress base.
    • Concealed Double Sleeper – 12V Automatic
      • 12V LED Overhead Lights
      • High-Density Foam Mattress
    FIXTURE CONVENIENCE
    All lighting and ventilation fixtures are conveniently adjustable to create a living atmosphere that feels like home.
    READ MORE +
    The lighting inside Living Vehicle is 100% LED and is controlled by dimming, residential-style switches. The lights themselves are a beautiful warm quality and may be adjusted independently in every room. Two patio lights and three scare lights are located on the exterior of the unit. There are two automatic ceiling vents that may be controlled using a wall switch with a fan for natural air circulation.
    • Dimmable LED Lighting
    • (2) 12V Automatic Operation Vents w/ Fans
    MAX STORAGE
    Full-time living is made possible with oversized storage compartments for all of your adventure equipment, food, clothing and necessities.
    READ MORE +
    A pass-through storage bay on the rear of the unit allows for easy access to large equipment such as surfboards, kayaks, and skis. The open A-frame at the front of the unit makes it possible to mount heavy duty equipment such as an external generator. The rear trailer hitch is ideal for mounting lightweight equipment such as a bicycle rack. Storage in the bedroom is configured to house all domestic goods and clothing with a premier focus on functionality and place. The kitchen features several large cabinets and a pull-out pantry for storage of cookware and food supplies.
    • Exterior Pass Through Compartment
    • Additional Oversized Exterior Storage Compartment
    • Open A-Frame for Heavyweight Mounting
    • Rear Hitch for Lightweight Mounting
    • 3-Drawer Dresser In Bedroom Closet
    • Open Cabinets and Pull-Out Pantry in Kitchen
    OFF-ROAD RUNNING GEAR
    Travel off the beaten path and experience the serenity of pristine wilderness with Living Vehicle’s off-road running gear.
    READ MORE +
    Living Vehicle is designed with robust off-road capabilities for traversing a wide variety of terrain. The ground clearance is increased significantly on the departure angle, providing capacity for travel over steep grade changes. The chassis strength is increased with an industry leading 7” Aluminum High-Capacity A-Frame and 15,000# Bulldog Coupler. The CCC is increased to allow for maximum gear and supplies.
    • 22” High Departure Ground Clearance
    • Four-Point 12V App-Controlled Stabilizers
    • (2) 6000# High Capacity Axles
    • 7” High Capacity A-Frame
    • 15,000 # Bulldog Coupler
    SLIDING GLASS DOOR
    Open your living space to the outdoors and discover an increased connection to nature on a daily basis.
    READ MORE +
    Every Living Vehicle includes an all-aluminum frame sliding glass door. This feature provides an easy-access weather barrier to the great outdoors that may be enjoyed open, or closed. The oversized eight-foot slider features two four-foot sections with one operable sliding door. The door opens to the exterior deck.
    • All-Aluminum 8’ Sliding Door
    • Hanging White Curtain & Track
    MAX “OFF-GRID” LITHIUM AND SOLAR POWER
    “Unplug” from the grid and experience the freedom of complete self-sufficiency with a robust lithium ion solar system.
    READ MORE +
    The all-lithium battery bank is incredibly reliable and extremely lightweight.  Sustainable power is provided from the roof-mounted solar system to maintain charge levels during use. Power is inverted from the 12V lithium battery bank with a top of the line Pure-Sine Wave Inverter, providing 110V power to the entire unit. Advanced monitoring capabilities including web-based diagnostics and interface are included.
    • (2) 12V LITHIUM Battery Banks
    • 2800W Pure Sine Inverter
    • 600W Monocrystalline Solar Panel Array
    • Converter w/ Remote Monitor Panel
    • Inverter Monitor Panel
    • Inverter Web-Interface & Diagnostics
    GOOD HOUSEKEEPING
    Let your living space work for you and spend more time enjoying life.
    READ MORE +
    The innovative Washer/Dryer combo has the ability to both wash and dry clothing in the same cycle with no need to switch over. A supplemental gray-water tank adds to the capacity of the system. For easy, on-the-go cleaning, a central-vac system extracts dust, dander and debris through the included hose. There is also a dedicated Trash-Chute from the kitchen that empties into an exterior access compartment with a double trash can on a pull out slider.
    • Washer & Dryer Combo, Vented, 110V
    • Central-Vac System & Hose
    • Basement Access Trash & Recycling Chute
    WIRELESS SECURITY & DRIVING MONITORING
    Towing and parking are made easy with a comprehensive road and security monitoring system.
    READ MORE +
    A four-camera monitoring system with a complete view of the unit’s perimeter doubles as a driving camera while on the road and a security camera when parked in a campground. The 7” wireless monitor may be taken back and forth from both the tow vehicle and the interior to monitor the front, back, and both sides of Living Vehicle. The TV in the lounge can also be used for security monitoring.
    • Front Hitch Monitoring Camera
    • Backup Camera
    • L & R Side Mount – Blind Spot Cameras
    • Wireless Roof-Mounted Transmitter Module
    • Wireless 7” LCD Tow Vehicle Screen
    • TV Monitor in Lounge
    OUTDOOR BBQ & DINING
    Extend your kitchen to the outdoors with a portable BBQ
    READ MORE +
    Living Vehicle includes a portable BBQ with a quick-connect propane fitting that is conveniently located on the deck. This convenient placement of the BBQ provides easy access to the kitchen and living area while cooking outdoors. Also included is a portable table.
    • Outdoor Table
    • Portable Propane BBQ
    Indoor & Outdoor Use
    Experience a seamless transition from indoor to outdoor activities.
    READ MORE +
    A large sliding glass door leading to the outdoor deck opens up the interior to the outside and offers a natural atmosphere to enjoy your surroundings. The detachable safety banister provides security for kids or pets when left alone. After a day of activity, feel free to enjoy a heated outdoor shower. But worry about tracking in dirt--the interior floor is designed to be highly durable and scratch resistant.
      Living Vehicle™ Elevations
      1. Propane tank access door.
      2. Tankless Water Heater Door.
      3. Primary Storage Compartment & Spare Tire
      4. Service Bay.  Elect. Waste. Water
      5. Exterior Outlet 110V
      6. Pull out Trash Cans Compartment
      7. Furnace Exhaust
      8. Pass-Through Storage Door
      9. Side View Camera
      10. Bedroom Sliding Window
      11. Bathroom Sliding Window
      12. Kitchen Sliding Window
      13. Kitchen Range Hood Vent
      14. Air Conditioner
      15. Powered Roof Vent
      21. Exterior Patio Light
      26. 12V Automatic Stabilizer App-Controlled
      32. Corner Trim Cap, Polished
      34. Electric Hitch Jack & Light
      14. Air Conditioner
      15. Powered Roof Vent
      16. Pass Through Storage Door
      17. Outdoor Stainless Shower Door
      18. Exterior Outlet 110V
      19. Fold-Down Deck
      20. Sliding Patio Door
      21. Exterior Patio Light
      22. Bedroom Sliding Window
      24. Pull-Out Battery & Inverter Compartment & Electronics Bay
      25. Pull-Out BBQ & Storage
      26. 12V Automatic Stabilizer App-Controlled
      30. Modular Railing System.
      32. Corner Trim Cap, Polished
      34. Electric Hitch Jack & Light
      14. Air Conditioner
      15. Powered Roof Vent
      19. Fold-Down Deck
      30. Modular Railing System.
      41. Solar Panels
      42. Bedroom Skylight
      43. Bathroom Skylight
      44. Kitchen Skylight
      14. Air Conditioner
      19. Fold-Down Deck
      21. Exterior Patio Light
      27. Front Hitch Camera
      28. Stainless Steel Front Dome Cap
      29. Stainless Steel Rock Guard
      30. Modular Railing System.
      31. Front Bedroom Window Fixed
      32. Corner Trim Cap, Polished
      33. Side Stainless Trim, Polished
      34. Electric Hitch Jack & Light
      14. Air Conditioner
      15. Powered Roof Vent
      19. Fold-Down Deck
      30. Modular Railing System.
      35. Custom Color Panel – Option
      36. Living Area Sliding Window
      37. Entry Door Awning – Automatic
      38. Backup Camera
      39. Stainless Steel Trim Surround
      40. Rear Hitch Receiver
