Eight years, four generations.
Every Living Vehicle has been designed, engineered and built by our own team, and each generation has taken off-grid living further. Here's how we got to what comes next.
Gen I · 2017–2020 · The originals
The original Living Vehicles were travel trailers in polished bare aluminum, with a fully welded aluminum chassis and frame, a deck that opens the living space to the outdoors, and solar power as standard.
Firsts
- All-aluminum construction
- Fold-down deck
- Solar power as standard

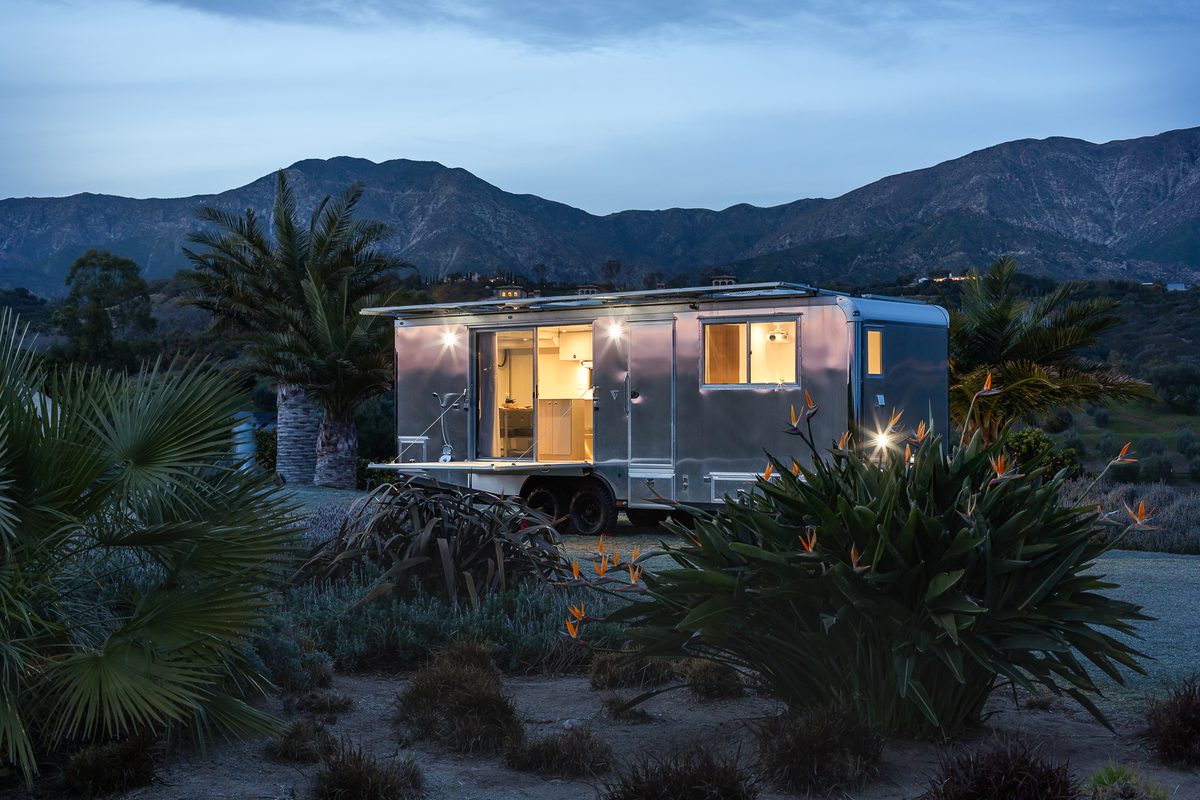

- Gen I · 2017
- Gen I · 2017
- Gen I · 2018 · Alabama Hills
Specifications
Trims: CORE / MAX / PRO (listed by J.D. Power as T-27 Model C, M and P).
| T27 Travel Series | T27 Live Series | |
|---|---|---|
| Interior length | 27′ 4″ | 27′ 4″ |
| Overall length | 30′ 11″ | 30′ 11″ |
| Exterior width | 8′ 4″ | 8′ 4″ |
| Exterior height | 10′ 11″ | 10′ 11″ |
| Interior ceiling | 6′ 8″ | 6′ 8″ |
| Sleeps | 4 | 4 (6 optional) |
| Dry weight (est.) | 6,500 lb | 7,992–8,790 lb, by trim |
| GVWR | 10,200 lb | 13,200 lb |
| Carrying capacity (est.) | 3,700 lb | up to 4,410 lb |
| Hitch weight (est.) | 790 lb | 990 lb |
| Energy storage | AGM batteries | 600 Ah AGM bank |
| Inverter | Not listed | 3,000 W pure sine hybrid |
| Solar | Not listed | 1,400 W |
| Fresh / gray / black | 50 / 42 / 33 gal | 100 / 62 / 45 gal |
| A/C / heat | Not listed | 13,500 BTU ducted / 35,000 BTU floor |
| Insulation | Not listed | R-25 roof, R-19 floor, R-7 walls |
| Axles | Not listed | (2) 6,000 lb torsion, 16″ aluminum wheels |
| Deck | Not listed | 8 ft fold-down patio deck, 1,000 lb |
Gen II · 2021–2022 · HD29
Gen II was a complete redesign: the HD29, built with a new production partner. A 29-foot travel trailer with a front bedroom, a mid bath and rear living space, it brought a commercial-grade shell and chassis, thicker insulated walls, backup power generation and remote monitoring of the energy system.
Firsts
- COR, MAX and PRO trim levels
- Backup power generation
- Remote energy monitoring

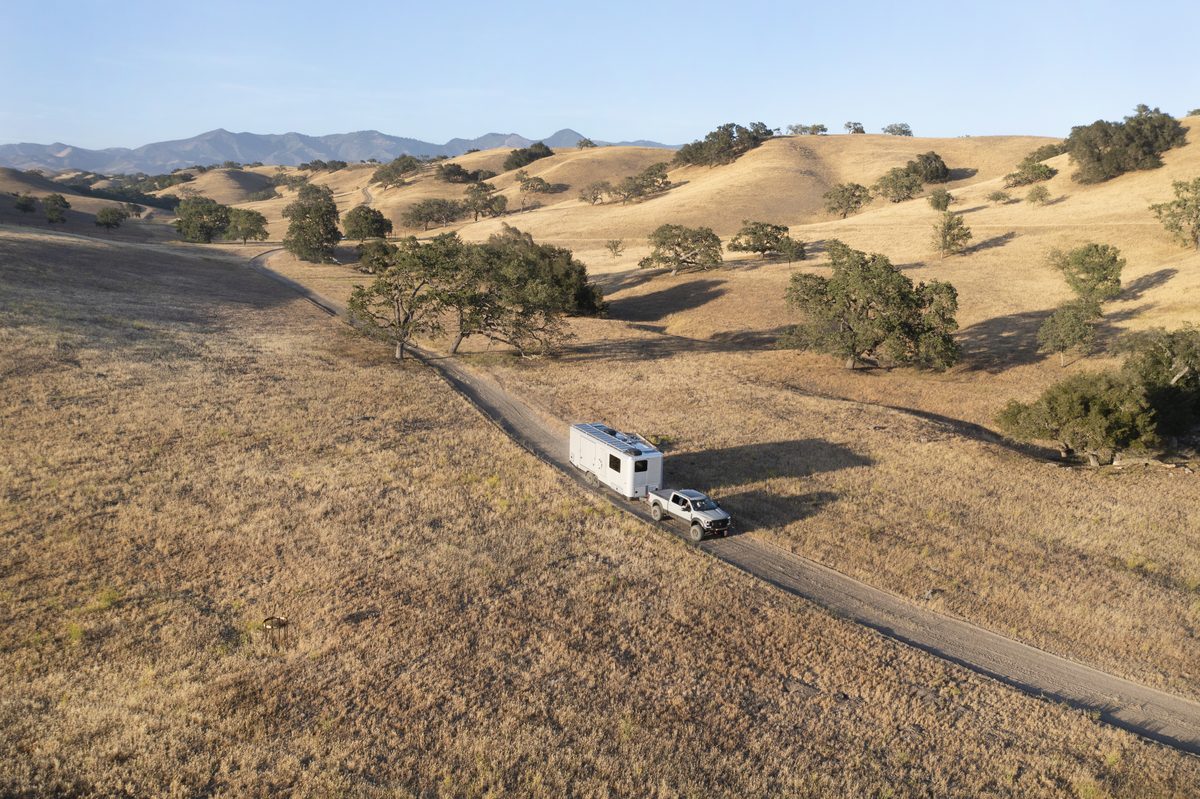

- Gen II · HD29
- Gen II · HD29
- Gen II · HD29
- Gen II · HD29
- Gen II · HD29
- Gen II · HD29
- Gen II · HD29
- Gen II · HD29 · Battery bank
- Gen II · HD29 · Solar roof
Specifications
Trims: CORE / MAX / PRO. The HD29 continued through 2023 as the transition to Gen III.
| HD29 | |
|---|---|
| Length / overall | 29′ 0″ / 32′ 8″ |
| Width / exterior height | 8′ 6″ / 12′ 0″ (12′ 4″ lifted) |
| Interior ceiling | 6′ 8″ |
| Sleeps | 4 (6 with Euroloft) |
| Dry weight (est.) | 12,000 / 13,000 / 14,000 lb |
| GVWR | 16,000 / 17,000 / 18,000 lb |
| Carrying capacity (est.) | up to 4,000 lb |
| Energy storage (LiFePO4) | 14.4 / 28.8 / 43.2 kWh |
| Inverter | 5 / 10 / 15 kW |
| Solar | 1,320 / 2,640 / 3,080 W (solar awning on MAX and PRO) |
| Temperature rating | 20–100°F; 0–110°F with the 4-Season package |
| Fresh / gray / black | 100 / 62–65 / 45 gal |
| Climate | 15,000 BTU A/C (second unit optional), 35,000 BTU propane floor heat |
| Chassis | Aluminum with steel axle mains, 19.5″ commercial wheels, 5-point auto-leveling, disc brakes on MAX and PRO, optional 4″ lift |
| Insulation | Rigid closed-cell foam: R-25 roof, R-13 floor and walls |
| Deck | 8 ft automatic fold-down patio deck, 1,500 lb |
Gen III · 2023–2024 · HD24 and HD30
Gen III introduced two new models, the HD24 and HD30, and retired the HD29. Mini-split heating and cooling replaced the rooftop air conditioner, which made room for dual solar awnings, and water generation made drinking water from the air.
Firsts
- Mini-split heating and cooling
- Dual solar awnings
- Water generation from the air
- Composting toilet options

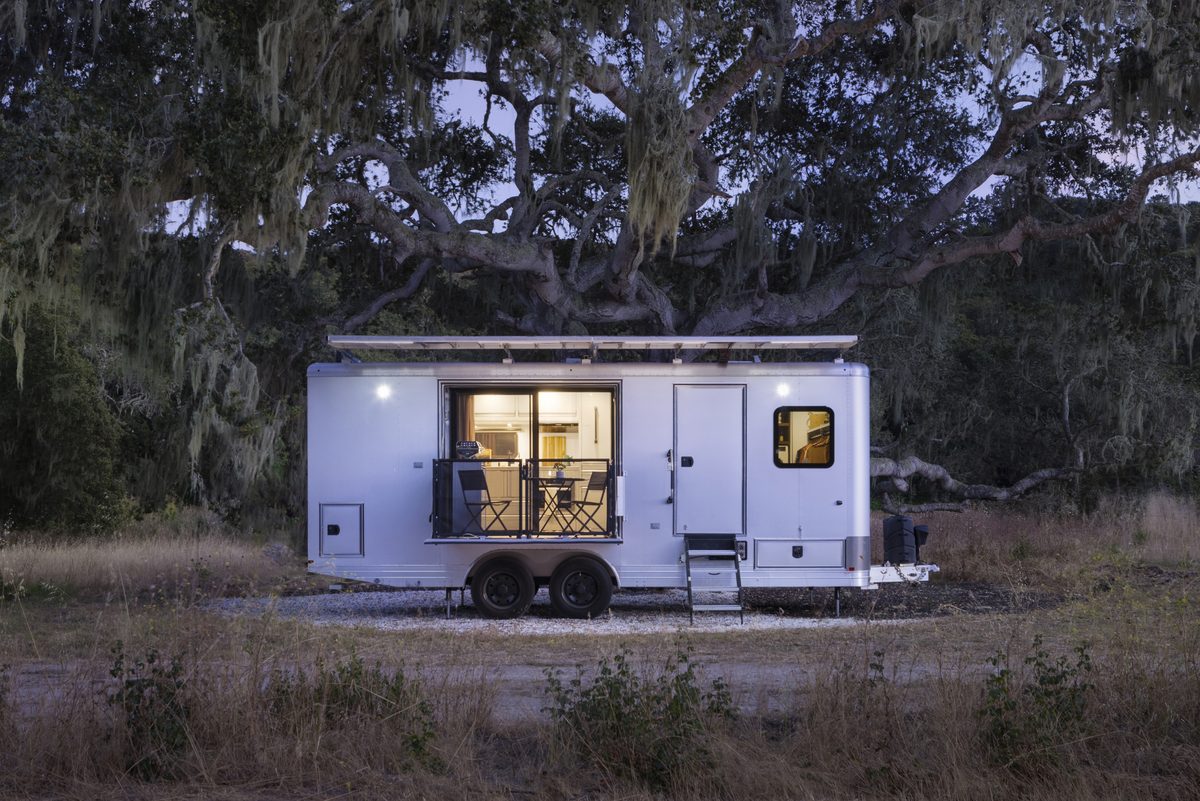

- Gen III · HD24
- Gen III · HD24
- Gen III · HD24 · Sierra Nevada
- Gen III · HD24
Specifications
Trims: COR / MAX / PRO.
| HD24 | HD30 | |
|---|---|---|
| Length | 24′ 2″ | 30′ 0″ |
| Width / exterior height | 8′ 6″ / 11′ 6″ | 8′ 6″ / 11′ 6″ |
| Interior ceiling | 6′ 10″ | 6′ 10″ |
| Sleeps | 4 | 4 (up to 8 with Euroloft) |
| Base weight (est.) | 11,000–13,000 lb | 14,000–16,000 lb |
| GVWR | 14,000–16,000 lb | 18,000–20,000 lb |
| Carrying capacity (est.) | 3,000 lb | 4,000 lb |
| Energy storage (LiFePO4) | 21.6 / 43.2 / 72 kWh | same |
| Inverter power (240V/120V) | 6 / 12 / 18 kW | same |
| Roof and awning solar | 1,200 / 2,200 / 3,400 W | 2,000 / 3,000 / 4,400 W |
| With 1,600 W deployable panels | up to 5,000 W | up to 6,000 W |
| Temperature rating | down to −4°F and up to 120°F (PRO) | same |
| Fresh / gray / black | 100 / 62 / 45 gal | 100 / 62 / 45 gal |
| Climate | 24,000 BTU mini-split (living and bedroom heads), 35,000 BTU propane backup heat | same |
| Water generation (option) | 5 gal/day | 5 gal/day |
| Axles / leveling | (2) 8,000 lb torsion / 4-point hydraulic | (3) 7,000 lb torsion / 4-point hydraulic |
| Exterior | .063″ matte anodized aluminum; solar awning (MAX), dual “Butterfly” awning (PRO) | same |
Gen IV · 2025 · GT Series
Gen IV refreshed the HD24 and HD30 and introduced Living Vehicle’s first fifth-wheel trailers, the GT32 and GT39.
Firsts
- First gooseneck (fifth-wheel) trailers
- Side-mounted solar awnings
- Water generation standard on PRO models

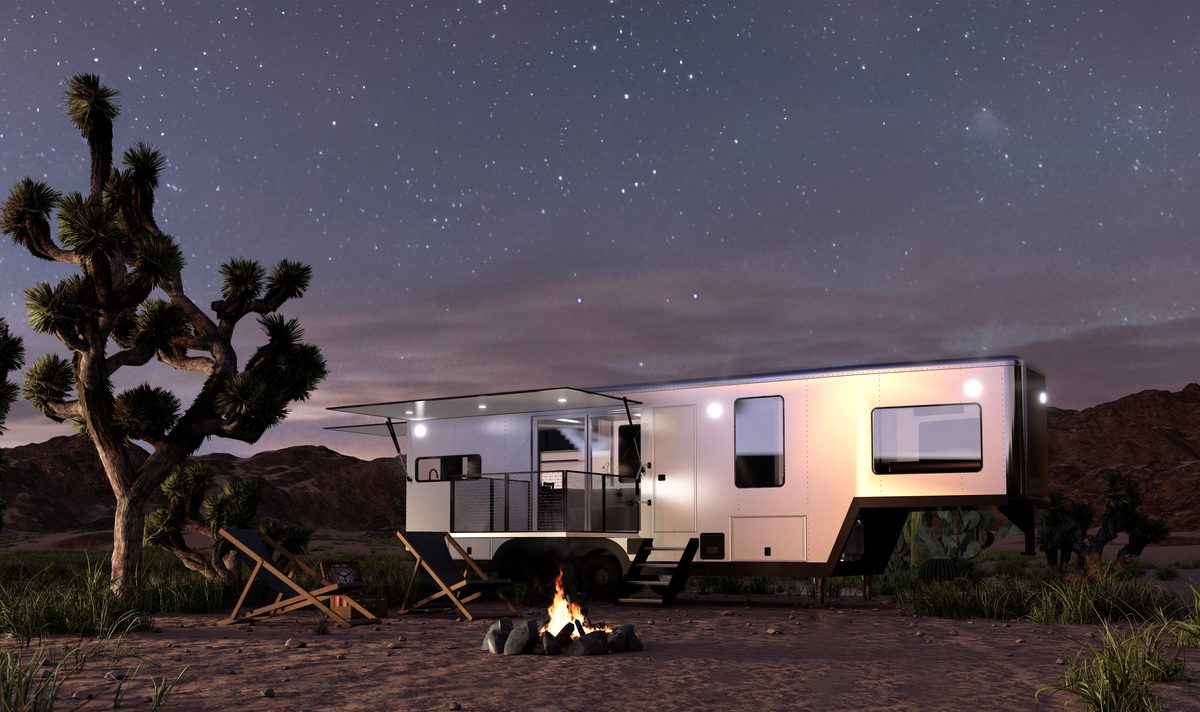

- Gen IV · GT Series (rendering)
- Gen IV · GT Series (rendering)
Specifications
Trims: COR / MAX / PRO.
GT32: a 32-foot fifth-wheel (gooseneck) trailer with a front bedroom and king loft bed.
| GT39 | |
|---|---|
| Hitch | Fifth wheel (gooseneck) |
| Length | 39′ 0″ |
| Width / exterior height | 8′ 6″ / 13′ 5″ |
| Ceiling: living / bath / bedroom | 8′ 6″ / 7′ 0″ / 6′ 5″ |
| Bedroom | Front king bedroom suite |
| Base weight (est.) | 18,000 lb (PRO) |
| GVWR | 21,000 lb |
| Carrying capacity (est.) | 3,000 lb |
| Pin weight (est.) | 3,150 lb (PRO) |
| Axles | 3 × 7,000 lb torsion, disc brakes |
| Energy storage | 72 kWh (PRO) |
| Inverter power | 18 kW (PRO) |
| Solar | Varies by trim, up to 7,020 W |
| Fresh / gray / black | 100 / 62 / 45 gal |
| Climate | Triple-zone mini-split, 35,000 BTU backup furnace |
| Leveling | 6-point hydraulic |
| Water generation | Up to 9 gal/day |
| Kitchen | 26 cu ft residential refrigerator, full-height dishwasher |
HD24 and HD30: refreshed in 2025, with the specifications in the Gen III table.
Specifications are as published for each model year. Weights are estimates. Living Vehicle’s current model is the LV Line; its specifications will be published separately.

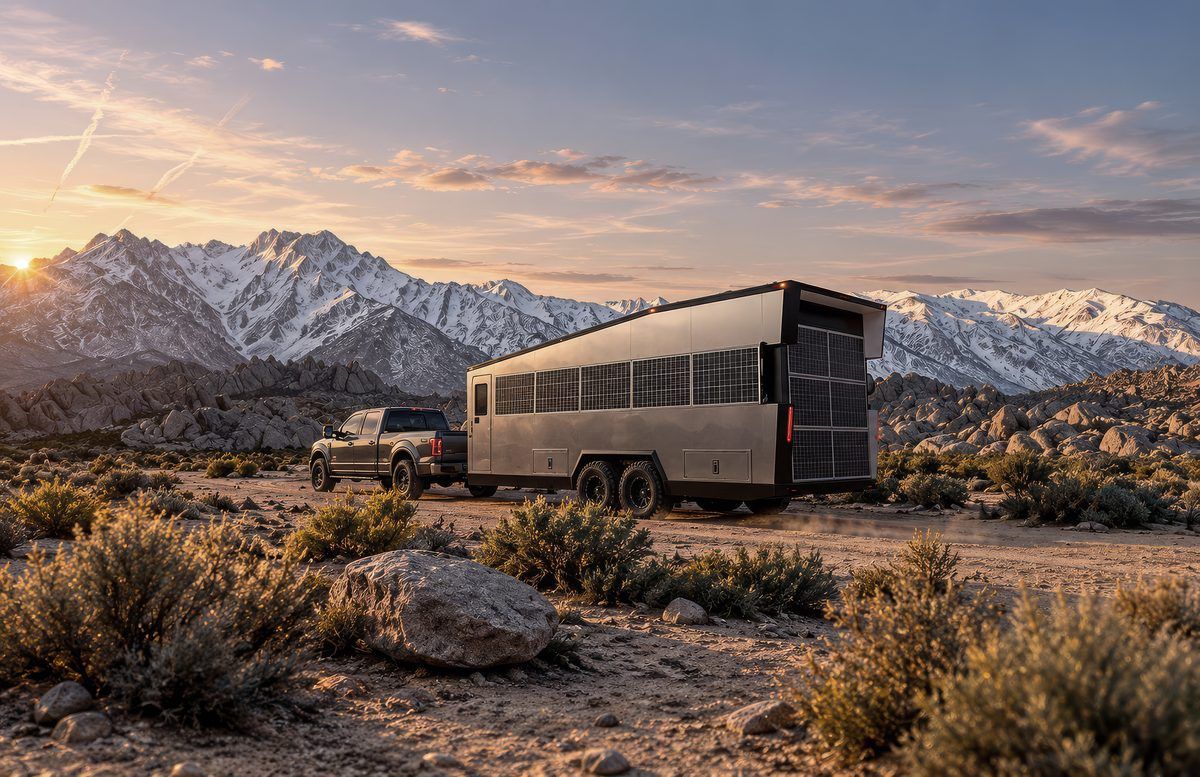

The LV Line
Everything four generations taught us now goes into one line, built to one standard. They'll be available for in-person tours and showings in early 2027.
